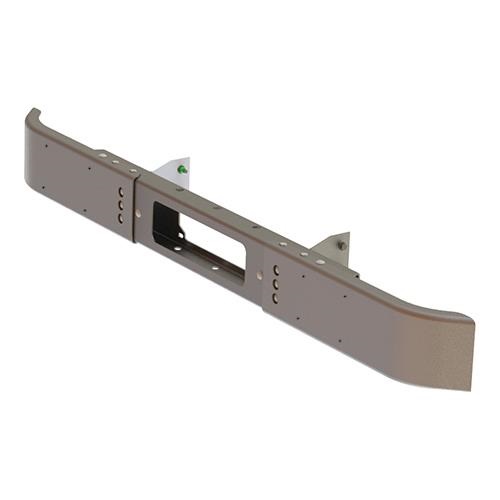

Spring Back Front Bumper 88W FCC

167008001  /

  • Spring Back Front Bumper
  • See it in ActionClick Here
  • Note*  This item is stocked as individual components
  • Because of this, the web site will always say the complete assembly is "backordered"
Item #Part #DescriptionQuantityUnit
1167008201BUMPER CHANNEL OUTER WELDED 88W2EA
2155008417LEAF SPRING FRONT 2EA
3167008402CHANNEL BUMPER 1EA
4167008401CHANNEL BUMPER RR 1EA
5167008403BRACKET BUMPER MOUNT LH1EA
6167008404BRACKET BUMPER MOUNT RH1EA
 052219NUT LOCKING  .5-13 GD 820EA
 1117036BOLT STL HX/HD GD5 ZP .5-13X1.58EA
 1117043BOLT STL HX/HD GD5 .5-13X1.758EA
 1117283NUT STL HEX LK B ZP .5-13 GR 58EA
 1117943WASHER STL FL HARD .11X.53X1.050.643LB
 40300007CARRIAGE BOLT 1/2-13X 2.50 GR5 ZP4EA
 40300203BOLT STL BPR CHR GR5 .5-13X1.58EA
 85761010WASHER SS FLAT .520EA
ChassisWidthUse Part Number:License Plate FrameHood Style
FORD E Series88 Wide155008004NoAluminum
FORD E Series93 Wide155008005NoAluminum
FORD E-Series (W/cut out)93 Wide205008005NoAluminum
FORD F-5988 Wide197008001NoAluminum
FORD F-5993 Wide155008006NoAluminum
FORD F-5993 Wide205008001NoAluminum
FREIGHTLINER88 Wide167008006YesAluminum
FREIGHTLINER88 Wide197008000NoAluminum
FREIGHTLINER88 Wide167008001NoAluminum
FREIGHTLINER93 Wide167008003NoAluminum
